GC-5K
Fillet-Light weight
Horizontal fillet automatic welding (lightweight) carriage.
Versatility: The carriage is optimized for fillet welding and can be used in a variety of work environments.
Precise speed control: Ensures constant speed operation, accurate speed, and consistent, precise welding quality.
Convenient installation: The magnetic lever mechanism allows for easy attachment and detachment of the equipment and quick setting of the welding position.
Operator convenience feature: Easily adjust the crater time (when welding ends) to improve work efficiency.
Safety and automation: The two-way button switch automatically stops at the desired point, making it safe and convenient to use.
Patent : 10-0827194
| Specification | GC-5K | |||||||||
| Dimensions | L216* W230* H260 | |||||||||
| Weight | 5.5kg | |||||||||
| Driving Method | 4-wheel chain drive | |||||||||
| Traveling Speed | 0~ 1000mm/min | |||||||||
| Torch adjustment | Back / Forth 30mm Up & Down 30mm | |||||||||
| Torch Angles adjustment | ±45° (at straight torch) | |||||||||
| Input power | AC220V 60Hz /50Hz | |||||||||
| Traveling Motor | DC 90VA / 3000 rpm | |||||||||
| Reducer | 250 : 1 | |||||||||
| Control Panel | 전원램프 , 시작 , 정지 , 속도 , 전진/후진 | |||||||||
| Welding/Non-welding | ||||||||||

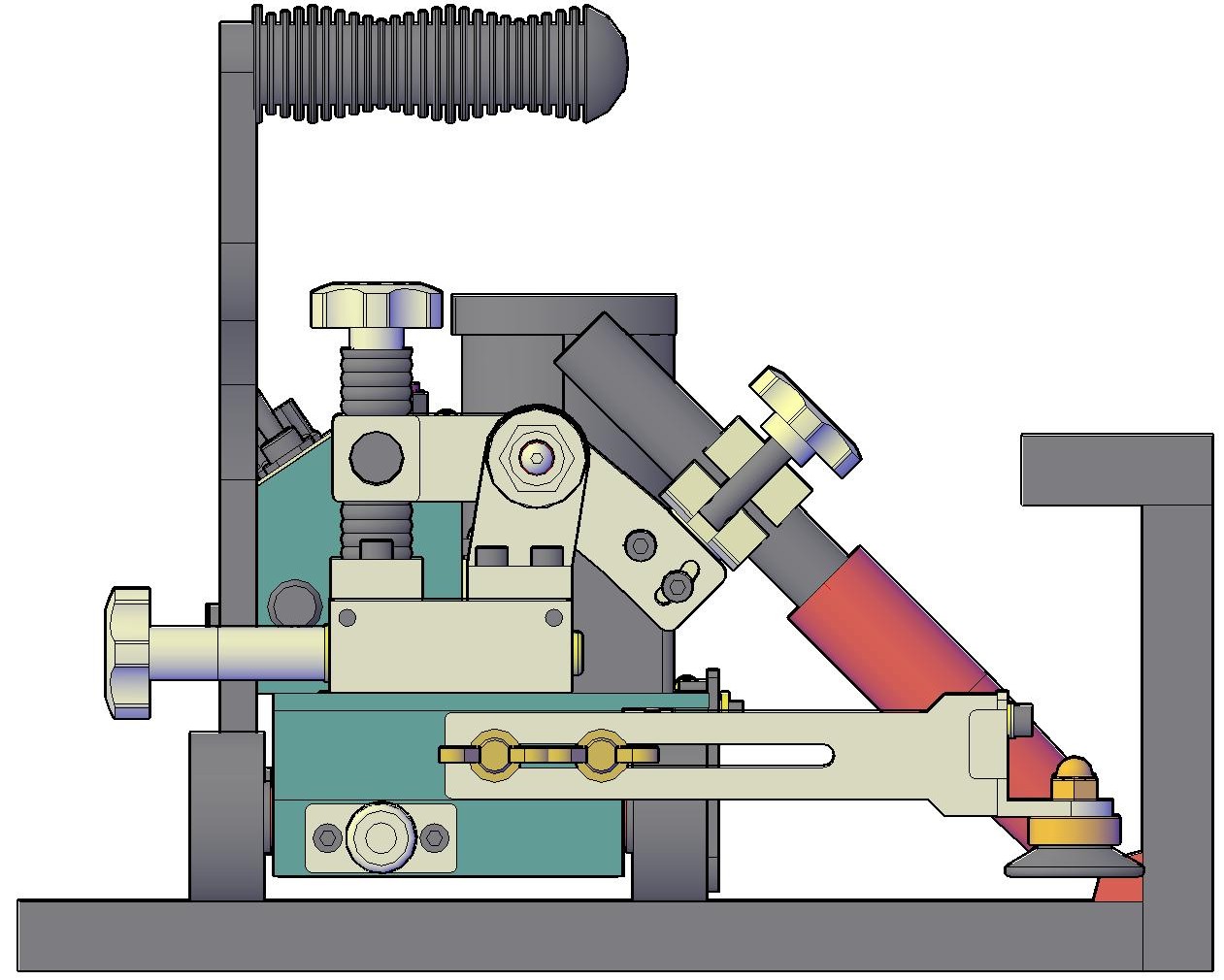

Welding Position
